Product & Technology

Standard Features

Operated by PLC with display
Frame and prisms in aluminium
Parallel drive
Bi-directional mechanism (closest path rotation)
Tailored Programming
Automated rotation functionality check
IP68 Connectors
IP68 Proximity sensors, PNP, 24VDC with bayonet quick connectors*
Power consumption 0-2W in standby mode

Functions

I/O Confirmation – Ensuring the correct face is being displayed
Customised programming
Ice breaking function – Programmed movement to prevent build-up of ice, snow or sand
Time lapse between sign face change (heart) seconds
IoT Ready – Connect to any system
API-enabled

Technical Specifications

EN-12996 certified
Self-lubricating bearings
IP68 proximity sensors PNP
IP 68 connections
Operating voltage 24VDC/12VDC

Certificates

Commitment to Quality and Excellence

With years of global experience, we take pride in delivering high-quality, reliable, and durable products for dynamic traffic management. Our solutions are designed and manufactured with the utmost care, precision, and expertise, ensuring they meet the highest industry standards.

Our commitment to quality is reflected in our EN12966 certification, which guarantees that our Variable Message Signs (VMS) comply with strict European requirements for performance, durability, and visibility. This certification underscores our dedication to providing safe, efficient, and sustainable traffic solutions worldwide.

By continuously innovating and refining our products, we ensure that road authorities and traffic professionals can rely on state-of-the-art technology that enhances both road safety and traffic efficiency.

The unique Triplesign design

The innovative Triplesign design features a patented system engineered for longevity and minimal maintenance. Its mechanism operates smoothly without the need for lubrication, and due to the low force required to turn the prisms, it can be powered by energy-efficient motors.

Maintenance for the mechanism is virtually non-existent. An annual inspection and, if needed, cleaning of the prisms suffices.

Easy access via the service hatch

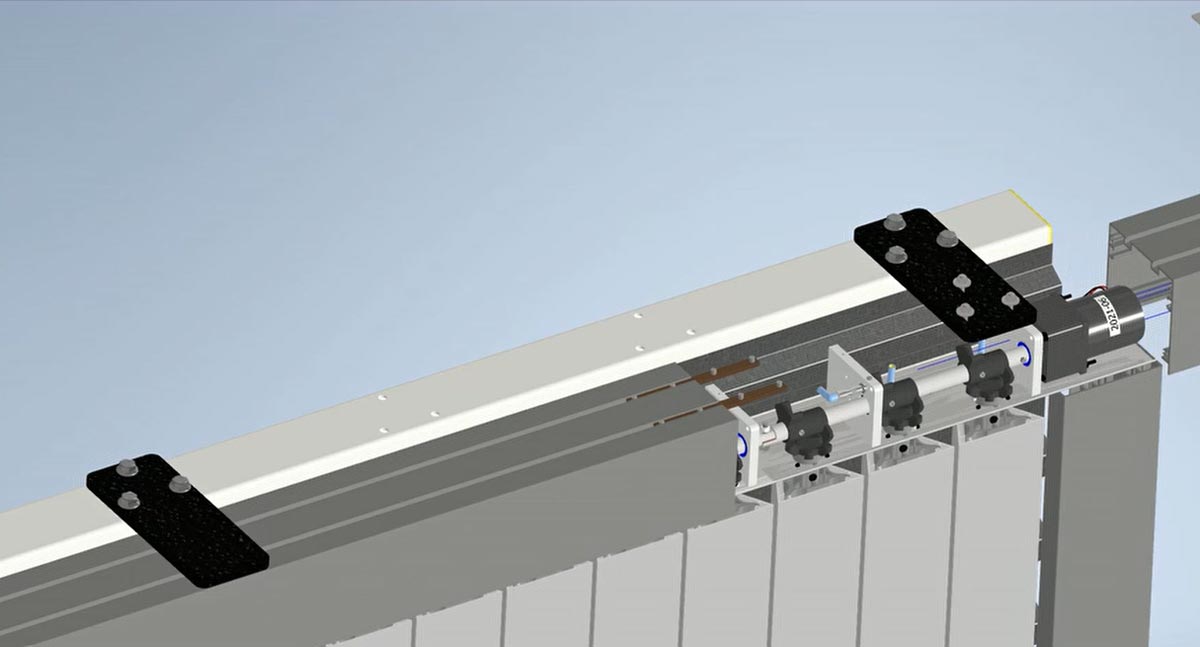

Smooth and fast change of sign face

The rotation of the prisms is executed smoothly and within just 3 seconds. Thanks to the individual transmission of the prisms and their positioning via a sensor, the image remains perfectly flat, even after years of use. No recalibration is needed.

The system requires very little maintenance, making it an efficient and reliable choice for the long term.

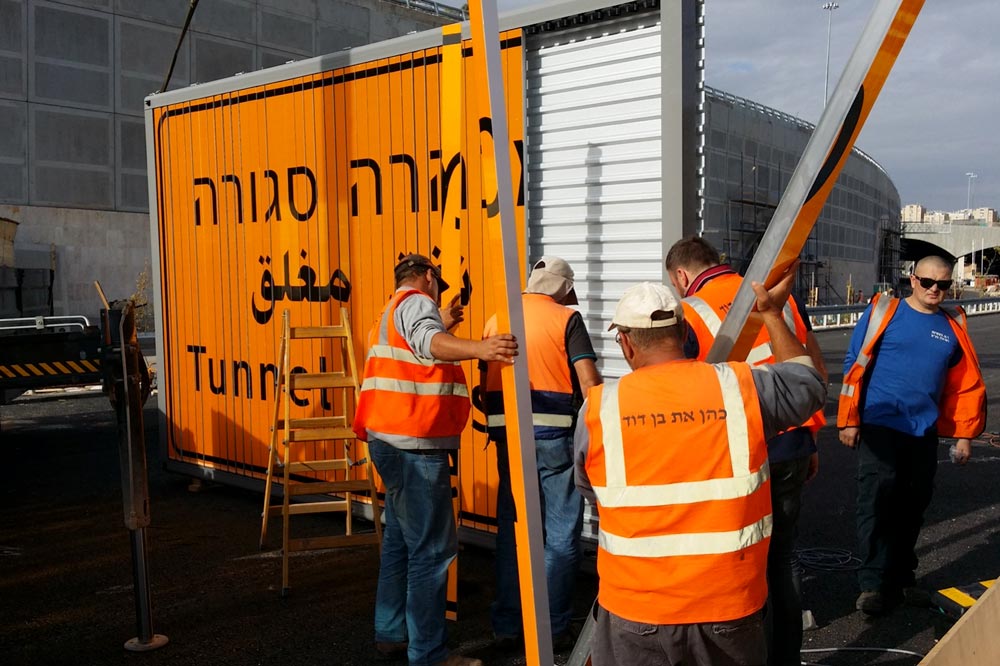

Modular system decreases transportation costs and allows for any size of sign

The technology powering Triplesign has been honed and refined over decades. But our journey doesn't end there! We are continually enhancing Triplesign technology to incorporate an array of additional functions and features.

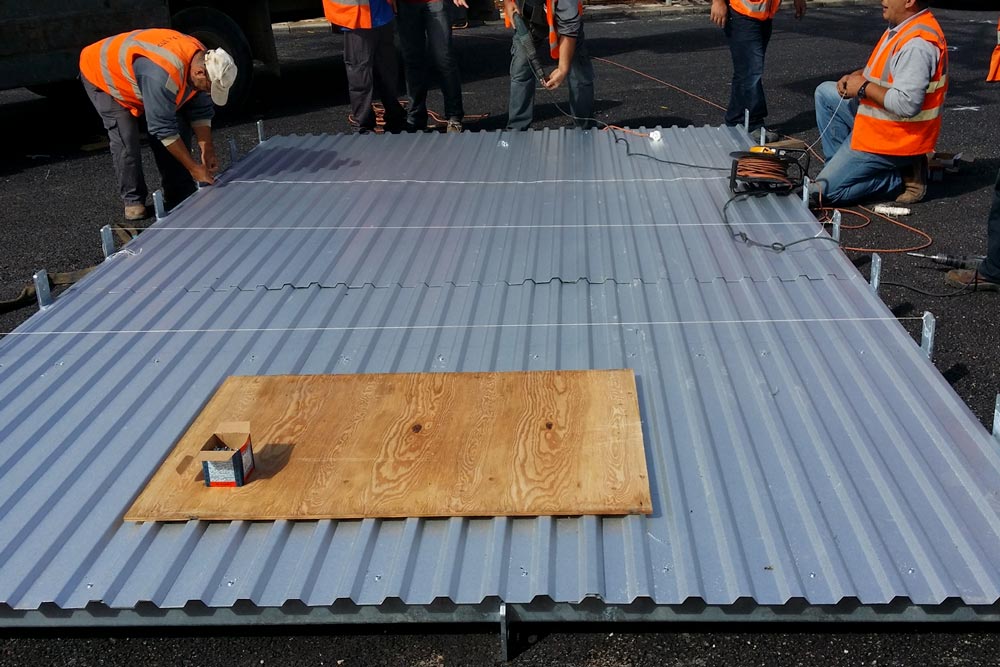

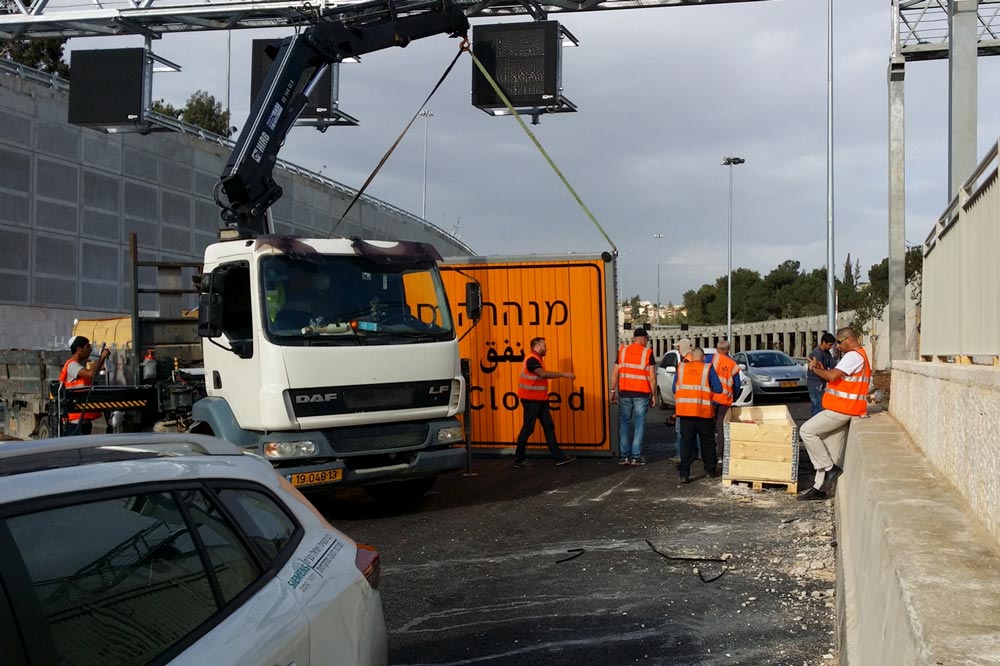

Triplesign is engineered as a modular system, allowing for the creation of signs in nearly any size imaginable. This construction method offers significant cost savings in transportation, particularly for larger units. Signs can be partially or fully disassembled for shipment, with final assembly occurring conveniently close to the installation site.

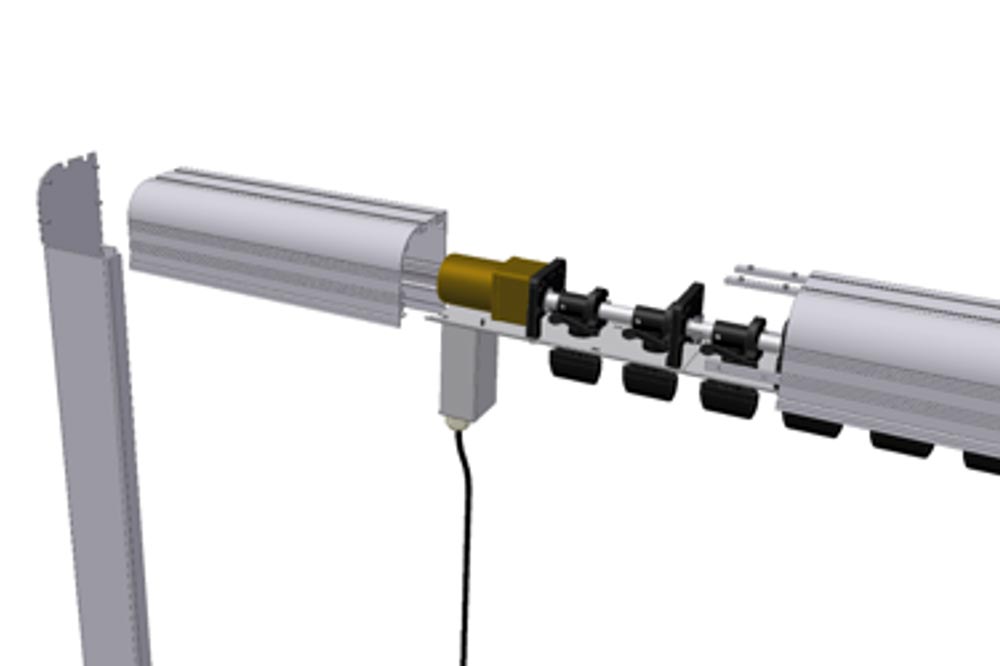

Simple mechanism exchange will extend service life

The entire mechanism, including the motor and sensors, can be replaced as a whole unit when it reaches the end of its service life, which we recommend after approximately 20 years.

Thanks to the use of premium materials and high-quality components, the system boasts exceptional reliability and resilience to various climatic conditions.

Communication Options

While dry contact control is standard, the sign can be operated via various means of communication. Apart from controlling the sign directly on the PLC, or manually rotate it using a crank, it can also be controlled remotely.

Wireless Communication

3G/4G/5G
WiFi
Bluetooth

Wire Communication

Ethernet Cable (Modbus TCP/IP)
Cable RS485 (Modbus RTU)
Dry Contacts (standard)

On Site

Directly from the PLC
On site control can be programmed to override remote control or vice versa

TIM - Triplesign Internet Manager

Modbus RS485 (multi-drop).
Modbus via ethernet (static or dynamic IP).
Web-interface, accessable from any computer, smartphone, tablet or laptop. TIM (Triplesign Internet Manager)

System Integration

Ready for the future

The Triplesign is API enabled and IoT Ready. Connect the sign to any system, sensors, cameras, counters – the list goes on!

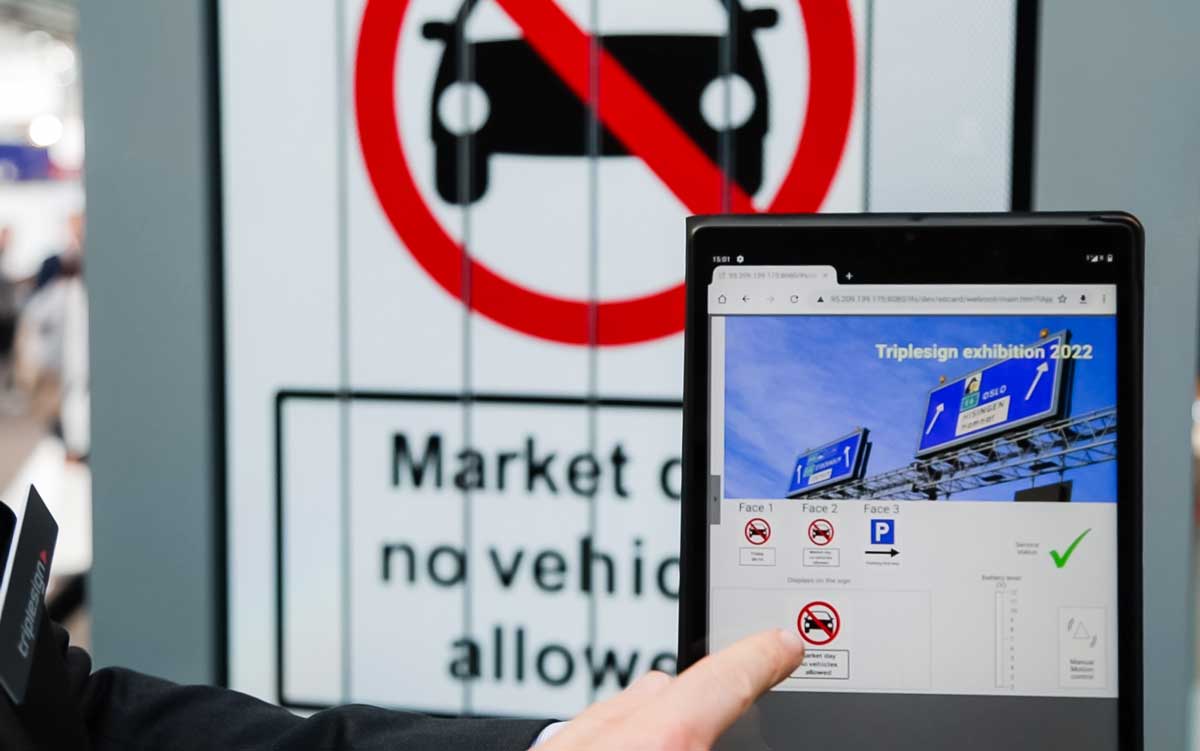

Web Portal

By using a secure, online web portal for Triplesign management, you gain complete access to monitor the sign’s status and exercise control over it. You can control a group of signs, you can group and ungroup signs, you can program a yearly calendar for various events, you can combine signs and sensors or other devices with the platform.

Partner Portals

Together with our trusted partners, we offer portals for complete Traffic Management Systems with a variety of integrations to control a large range of traffic equipment, down to standalone management of a single Triplesign.

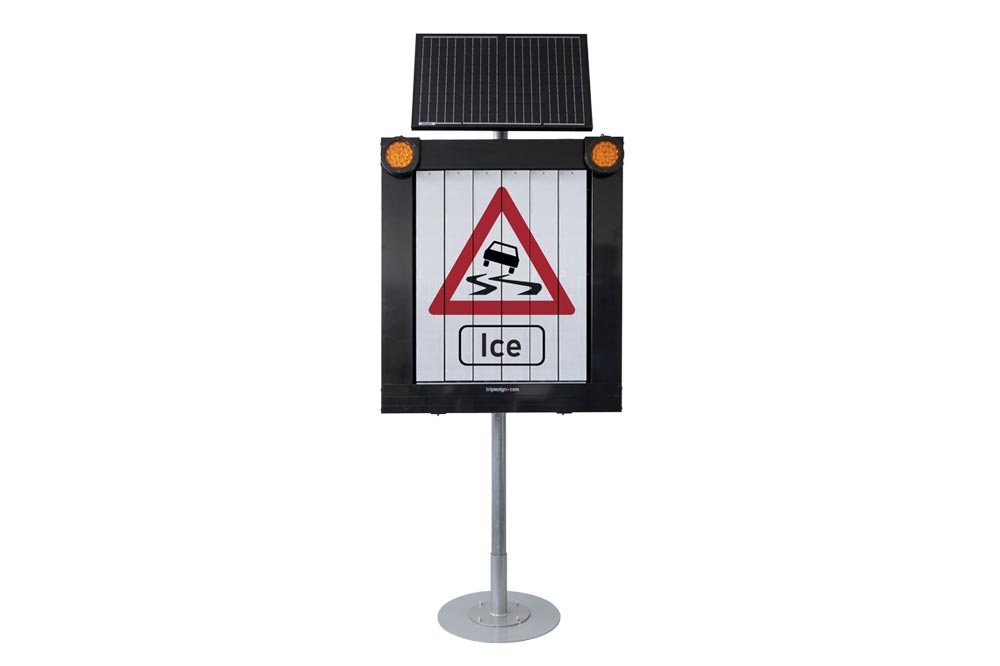

UPS Solar

The extreme low power consumption, especially in standby, opens up for solar solutions in combination with UPS (uninterruptible power supply) in remote locations.
